WAX510D – 802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel


Tên sản phẩm: 802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel WAX510D

Mã sản phẩm: WAX510D

THÔNG SỐ KỸ THUẬT

Models
WAX510D
WAX510D
Product name
Description 802.11ax (WiFi 6) Dual-Radio Unified Access Point
Wireless
Standard IEEE802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575Mbps
5GHz: 1200Mbps
Frequency band 2.4 GHz (IEEE 802.11 b/g/n)

  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz

5 GHz (IEEE 802.11 a/n/ac)

  • USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
  • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26dBm
EU (2.4GHz/5GHz): 20/25dBm
RF Design
Antenna type 2×2 dual-optimized antenna
Antenna gain 2.4GHz: Peak Gain 5dBi
5GHz: Peak Gain 6dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -101 dBm
WLAN feature
Band Steering Yes
WDS Future Support
Mesh AP (By License) Future Support
Mesh AP for multiple SSID with VLAN Future Support
Smart mesh Future Support
Fast roaming Pre-authentication, PMK caching and 802.11r
DCS (Auto Channel) Yes
Load balancing Yes
Security
Wireless Security
  • WPA
  • WPA-PSK
  • WPA-Enterprise (WPA/WPA2/WPA3)
Access management
  • L2-isolation
  • MAC filtering
  • Rogue AP detection
  • EAP
  • IEEE 802.1X
  • RADIUS authentication
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes
Management
Operating mode
  • Nebula Cloud managed
  • Controller-managed
  • Standalone
ZON Utility
  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device factory reset
    • Device reboot
    • Device locating
    • Web GUI access
    • Firmware upgrade
    • Password configuration
    • One-click quick association with Zyxel AP Configurator (ZAC)
Zyxel AP Configurator
  • Batch AP configuration
  • Batch AP firmware upgrade
  • Batch AP profile backup
Zyxel Wireless Optimizer
  • WiFi AP planning
  • WiFi coverage detection
  • Wireless health management
Web UI/ CLI Yes
SNMP Yes
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
180 x 180 x 39 / 7.09 x 7.09 x 1.54
Weight (g/lb.)
453g / 1
Packing Dimensions (WxDxH)(mm/in.)
229 x 216 x 64 / 9.02 x 8.5 x 2.52
Weight (g/lb.)
770g / 1.7
Included accessories
  • Mount plate
  • Mounting screws
MTBF (hr) 635,837
Physical Interfaces
Ethernet port
  • 1 x 10/100/1000M LAN
Power
  • PoE (802.3)at: power draw 17 W
  • DC input : 12 VDC 1.5A
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing)
Storage Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
  • FCC Part 15C
  • FCC Part 15E
  • ETSI EN 300 328
  • EN 301 893
  • LP0002
EMC
  • FCC Part 15B
  • EN 301 489-1
  • EN 301 489-17
  • EN55022
  • EN55024
  • EN61000-3-2/-3
  • EN60601-1-2
  • BSMI CNS13438
Safety
  • Safety EN 60950-1
  • IEC 60950-1
  • BSMI CNS14336-1

– Bảo hành: 3 năm

– Giá chưa bao gồm VAT

14,779,000 Vì ảnh hưởng dịch Covid 19 nên hàng hóa biến động.
Vui lòng gọi trực tiếp để cập nhật tình trạng hàng và giá!

802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel WAX510D được phân phối chính hãng tại 2Techshop.com.

802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel WAX510D True WiFi 6

802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel WAX510D

It is truly the next generation of wireless (WiFi 6) AP. Especially for businesses looking to strike the right balance between performance and budget. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO, which can’t be found in the earlier releases of 802.11ax products. The product boasts an impressive quad-core processor with 2 network accumulators to guarantee that a smooth and consistently fast service is provided to each client at all times.

An access point that fits your need

We understand that mounting an access point to the ceiling isn’t always possible due to the challenging environments like warehouses, historical buildings or stylish hotels were the aesthetics of the building are a priority. The product is equipped with a dual-optimized antenna that is selectable. Allowing the access point to be mounted on the wall or on the ceiling without compromising on performance and coverage.

802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel WAX510D

802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel WAX510D

802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel WAX510D The smartest choice

It is not only efficient at delivering impressive high speeds with smooth and consistent delivery to wireless clients, but also it’s efficient on power. The WAX510D can deliver its impressive performance while keeping the consumption of PoE within the PoE+ standard. The product can be managed via NCC (Nebula control Center), on-premises controller or simply operate alone (controller less). You can choose the way that is best suited to your needs.

802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel WAX510D
802.11ax (WiFi 6) Dual-Radio Unified Access Point Zyxel WAX510D

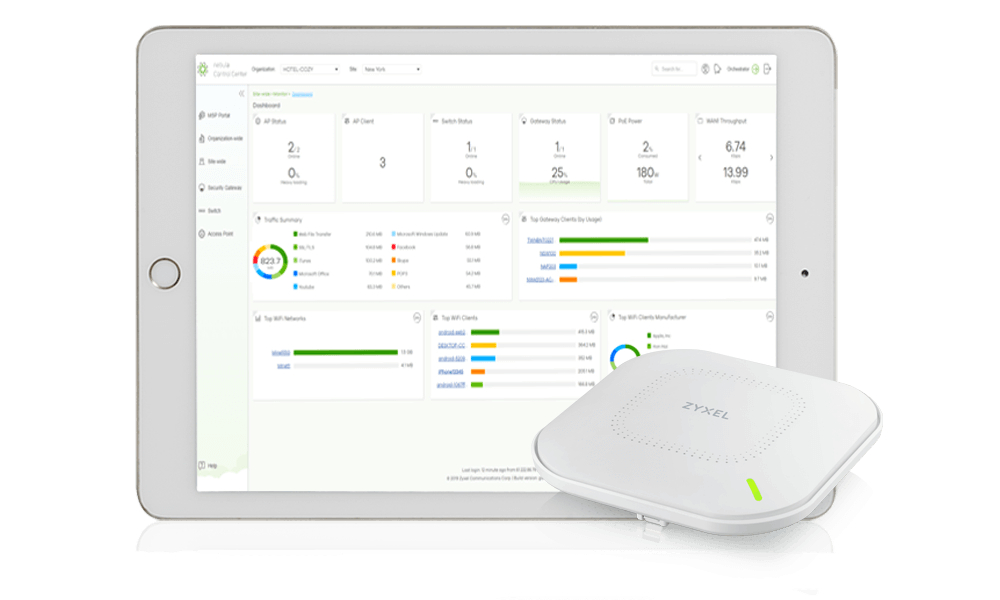

Manage it your way
